Tree Shaker OS - Rope shaker OS

Fruit shaker, Vielitz, Bystron OS, rope shaker, apple shaker, OS, branch shaker, olive shaker, nut shaker, fruit tree shaker, pear shaker, plum shaker, apricot shaker, nut shaker, cherry shaker, cable shaker

€1,892.10

Available, delivery time: 2-5 days

Product number: 81825

Product information "Tree Shaker OS - Rope shaker OS"

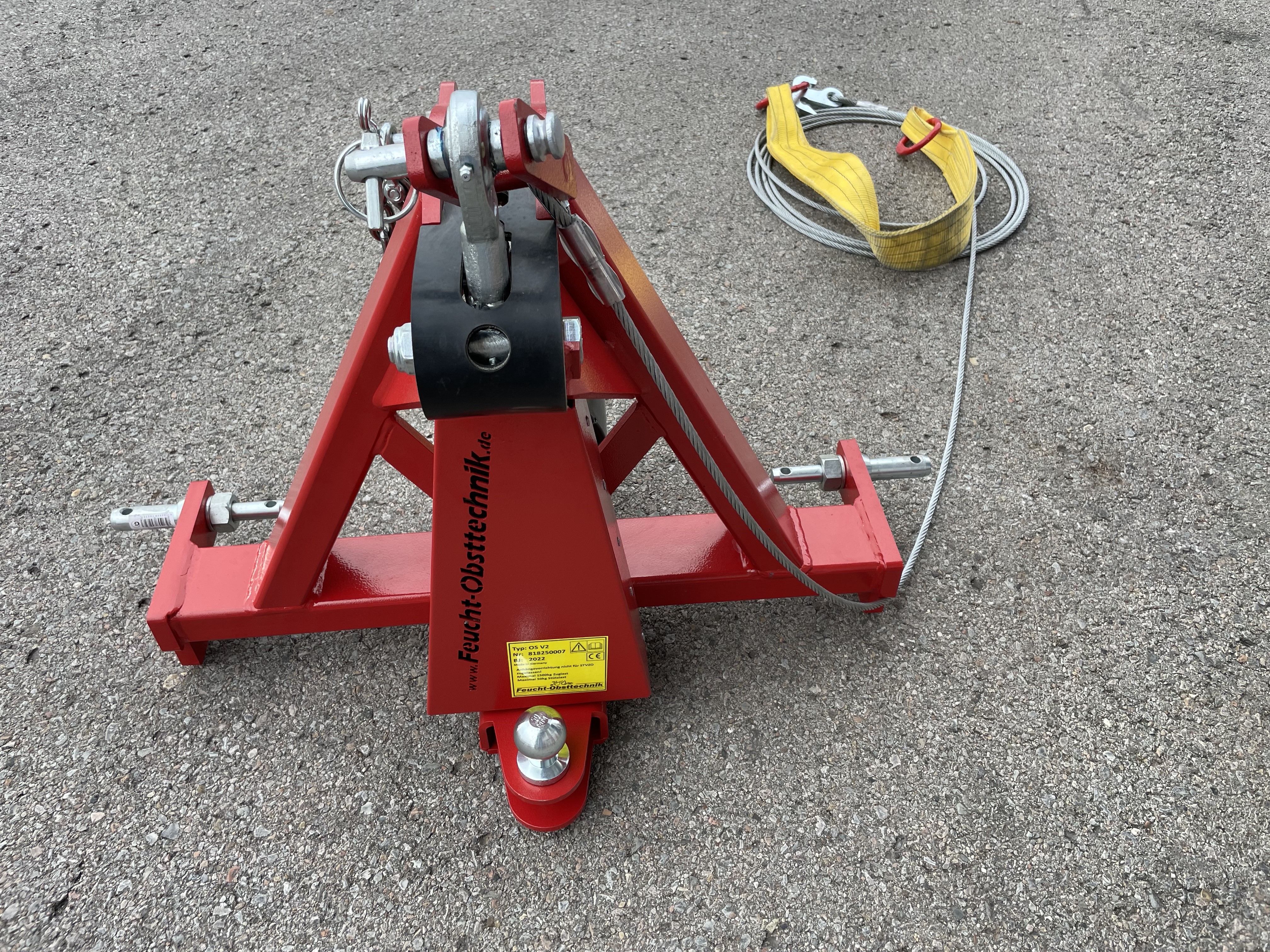

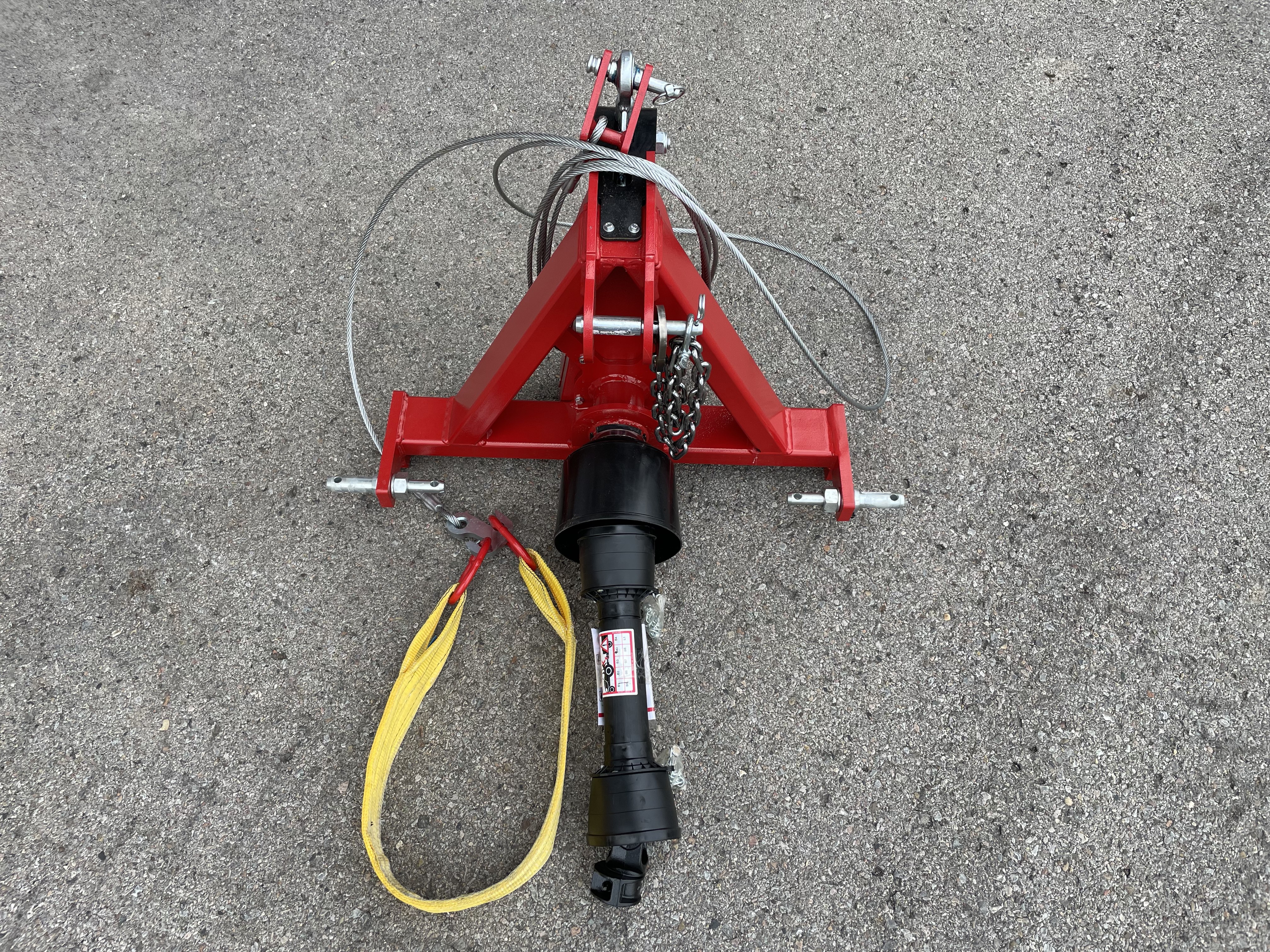

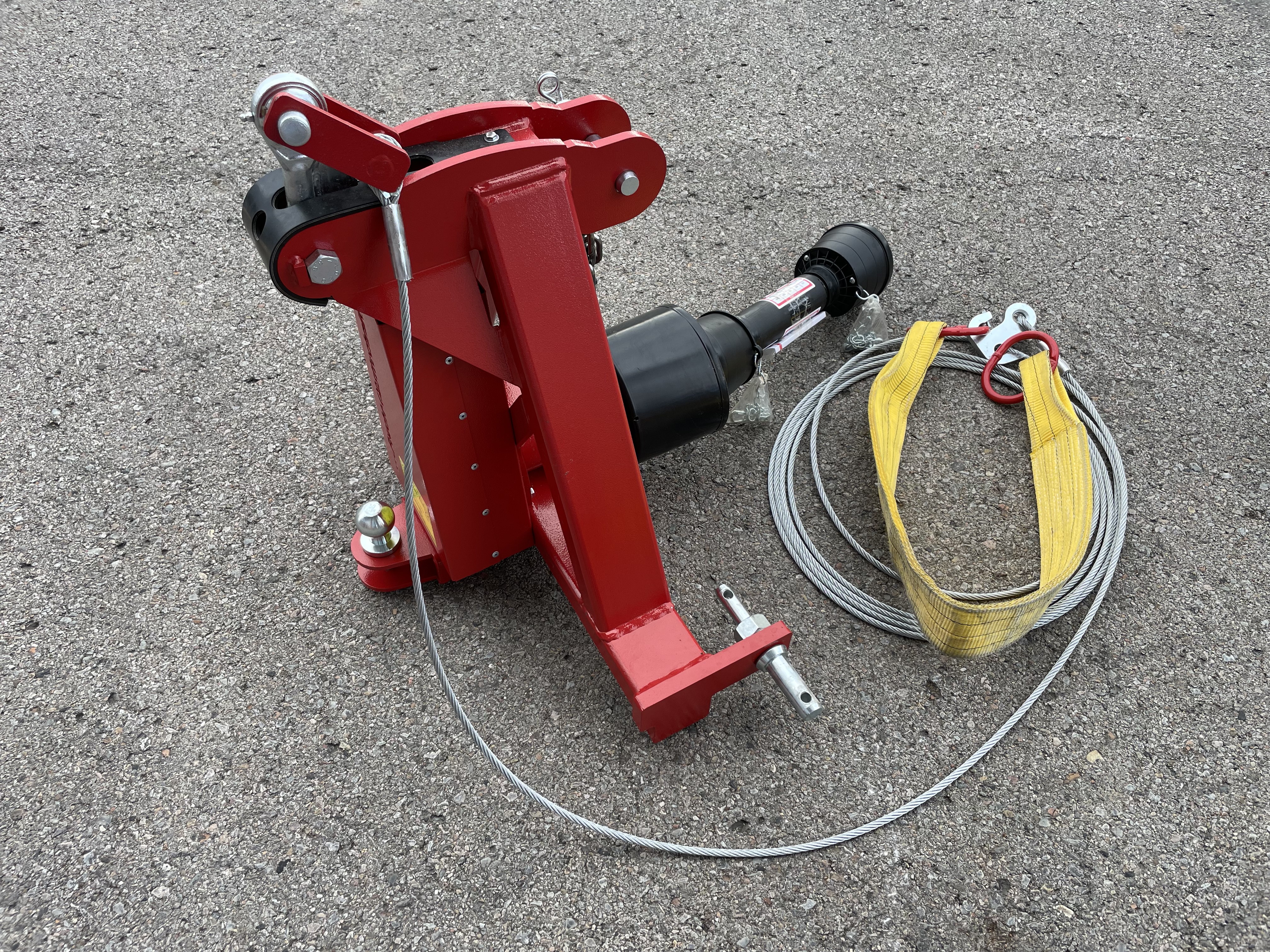

Rope shaker complete with 10 meter cable and branch strap

The tree shaker for apples, pears, cherries, almonds, walnuts, plums, olives, nuts etc.

The tree shaker OS is a 3-point rope shaker. It is attached to the front or rear of the tractor and driven via the PTO shaft.

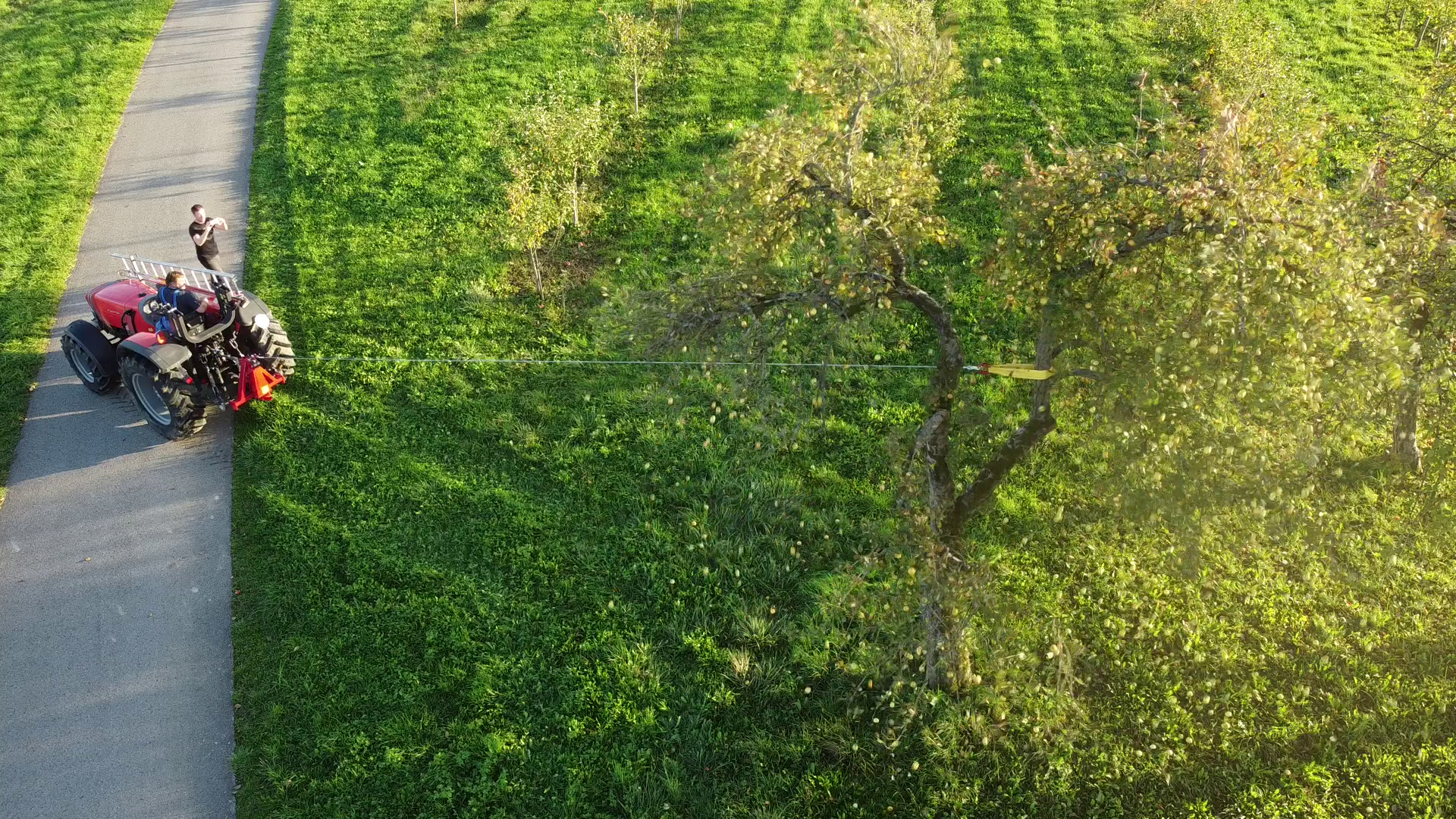

The 54 kg device is equipped with a 10 meter long steel wire rope that is hooked into the main branches of the crown. The rope is then tensioned with the tractor and the shaking process can begin. The branch band/strap protects the bark. The shaking process takes approx. 3-5 minutes on a large standard tree. very quick attachment to the tree with the double hook Three-point hitch CAT 1 and 2 Wire rope 8mm, 10m long Branch tape with two round eyelets

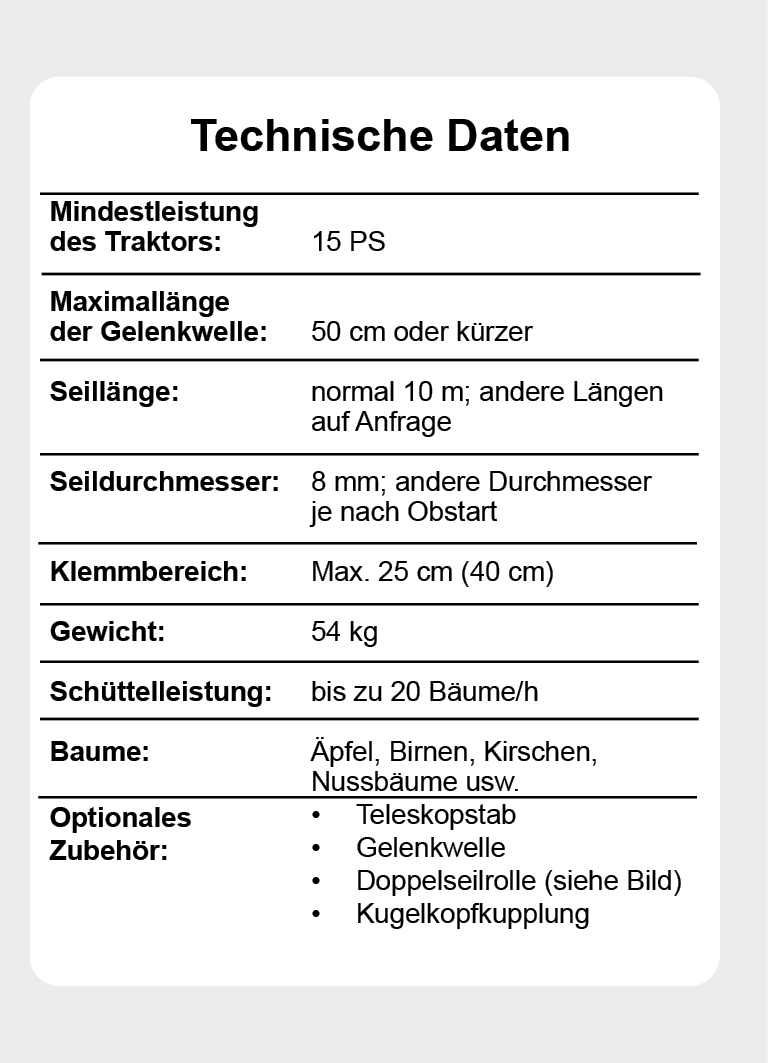

Weight 54kg

Shaking performance up to 20 trees per hour Tractor should weigh at least 1-1.5t

The shaker is extremely robust. Most stable tubular frame design in the area of the connecting rod and drive parts. Bearing dimensioning of 28,000kg. The rope is not deflected and therefore has a long service life.

available accessories: PTO shaft Ball head coupling

Double rope pulley for shaking two trees in rows at the same time Telescopic pole for attaching the rope to the tree at high altitude without a ladder

Scope of delivery: 10m pull rope and branch strap (yellow), bolts for top link CAT I/II,

without cardan shaft, without telescopic rod - available as a separate accessory

Note: Freight forwarding, please let us know your telephone number for shipment notification!

Zubehör zum Schüttler OS

Telescopic rod TS - for shaker OS

Bar for shaking and processing trees. How it works when used in combination with our fruit shaker OS: The band attached to the rope is placed on the branch using the telescopic rod hook. Using the telescopic rod hook, the strap eyelet is attached to the rope hook. Shaking the tree with the fruit shaker OS. Unhook the strap eyelet using the telescopic rod hook. There are various attachments such as shaker hooks, tree saws or our special hook for hanging the shaker rope on the tree. Length max. 4.5m Length when pushed together 1.85m Scope of delivery: Telescopic rod 4.5m and hook attachment for shaker OS

€238.00

PTO shaft - GW for shaker OS

PTO shaft with spline profile 1 3/8" (6) suitable for fruit shaker OS Length adjustment to your tractor may be necessary Inserted length 510mm, inserted length 710mm Weight 8.3kg

€148.75

Ball head trailer hitch for OS

Ball head coupling for shaker OS for self-assembly without STVZO approval, not approved for road traffic

€47.60
